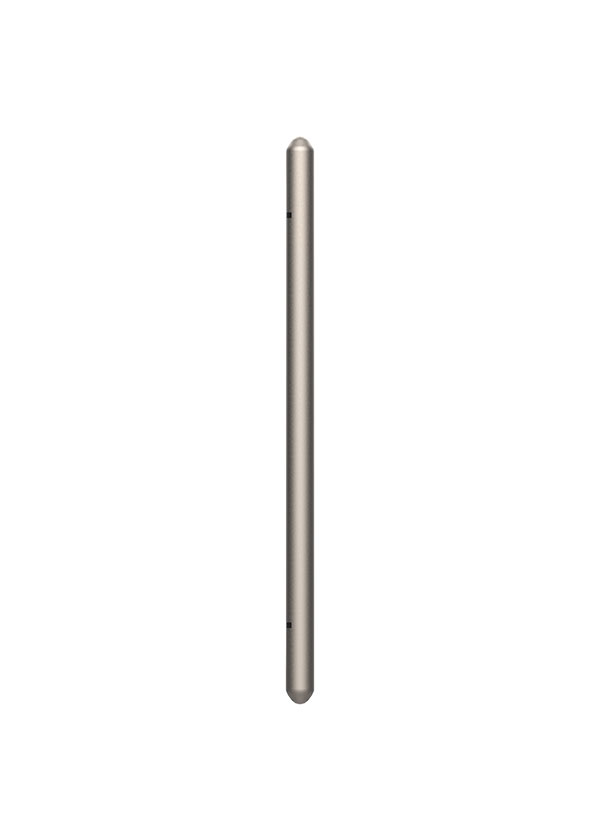

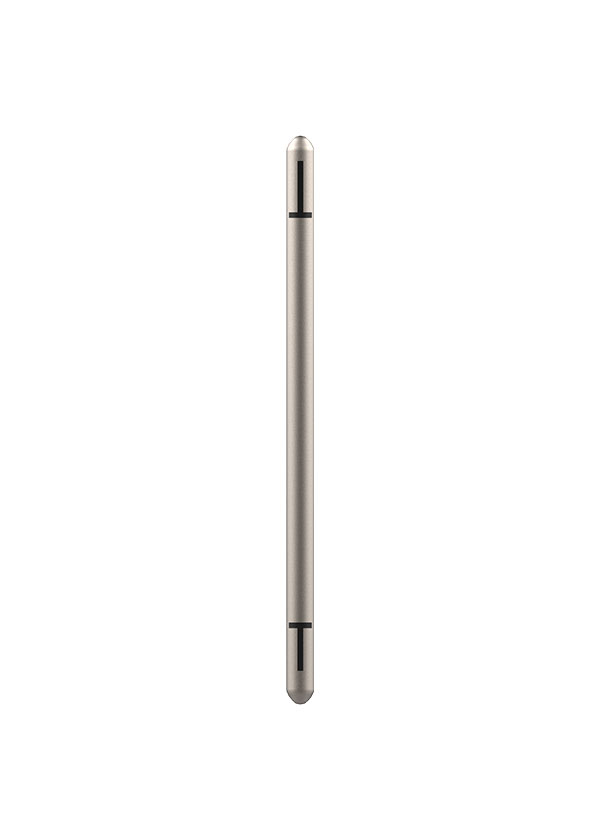

Straight Rods
RODS
The set screw is a so called “break-off torque screw”, which comes with a set screw insertion instrument to which the set screw is firmly attached, allowing proper placement and substantially reduces the risk of falling off intra-operatively.
o Ø 5.0 mm
o Ø 5.5 mm
Materials:
Titanium Grade 23
Share
About the product
All parts of the system are sterile packaged.
Quality is in the details
The system is suitable for both open and percutaneous/MIS procedures. When using the appropriate screw design wich is available hereto (page 13), placement of the screw following the so called Bi-Cortical / Mid-line technique is possible.
Straight Rods
Code Diameter xx (mm) Length yy (mm) Code Diameter xx (mm) Length yy (mm)
52-1040.S 5 40 52-2040.S 5,5 40
52-1050.S 5 50 52-2050.S 5,5 50
52-1060.S 5 60 52-2060.S 5,5 60
52-1070.S 5 70 52-2070.S 5,5 70
52-1080.S 5 80 52-2080.S 5,5 80
52-1090.S 5 90 52-2090.S 5,5 90
52-1100.S 5 100 52-2100.S 5,5 100
52-1110.S 5 110 52-2110.S 5,5 110
52-1120.S 5 120 52-2120.S 5,5 120
52-1140.S 5 140 52-2140.S 5,5 140
52-1160.S 5 160 52-2160.S 5,5 160
52-1180.S 5 180 52-2180.S 5,5 180
52-1200.S 5 200 52-2200.S 5,5 200
52-1450.S 5 450 52-2450.S 5,5 450
Technical Information
| Ref. Code | Footprint Height x Width | Kyphosis Angles | Heights |
|---|---|---|---|
| ACC1212**00 | 12x12 mm | 0° | 4, 5, 6, 7, 8, 9 mm |
| ACC1212**05 | 12x12 mm | 5° | 4, 5, 6, 7, 8, 9 mm |
| ACC1414**00 | 14x14 mm | 0° | 4, 5, 6, 7, 8, 9 mm |
| ACC1414**05 | 14x14 mm | 5° | 4, 5, 6, 7, 8, 9 mm |
| ACC1616**00 | 16x16 mm | 0° | 4, 5, 6, 7, 8, 9 mm |
| ACC1616**05 | 16x16 mm | 5° | 4, 5, 6, 7, 8, 9 mm |
| ACC1412**05 | 14x12 mm | 5° | 4, 5, 6, 7, 8, 9 mm |
| ACC1614**05 | 16x14 mm | 5° | 4, 5, 6, 7, 8, 9 mm |
| ACC1816**05 | 18x16 mm | 5° | 4, 5, 6, 7, 8, 9 mm |
